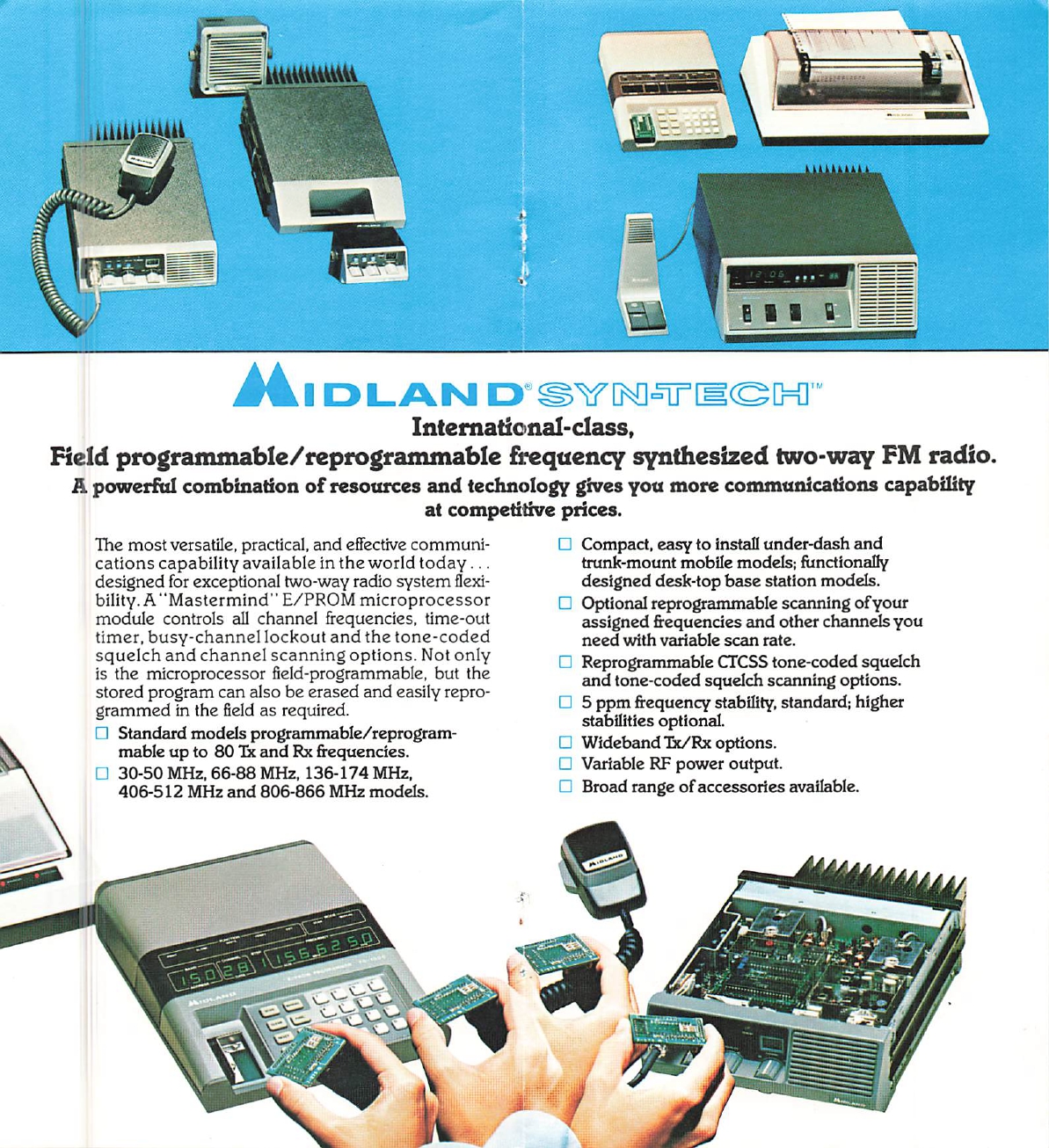

The Syntech I (AKA Syntech 1 or ST1) uses a "Z-273" module to hold the codeplug in a UV-erased PROM - i.e. the frequency and tone information. Changing anything requires erasing the PROM chip under a UV light and then reprogramming it with the 70-1000 stand-alone programmer, or the 70-1000c programmer which uses a PC to reprogram the eprom module.

The Syntech II (AKA Syntech 2 or ST2) and XTR have a programming connector for programming by a PC using the the 70-1308A cable. The ST1s were made in the early 1980s... the XTR was the transition model between the I and the II, it and the ST2s came out in very late 80s/early 90s. The STI control head has blue pushbuttons, the ST2 head has white buttons.

The newest models are the Bantam and Titan models. The Bantam radios are the smallest, programmed through the RJ-45 microphone connector with the 70-1309 programmer in line between the radio and a PC serial port. The Titan models are their current production units. The Securicor radios are Titans that were manufactured during the time Midland was owned by Securicor (Midland is now back under its own name).

This is my archive of Midland LMR Syntech1 Files


Model Type Split Power Channel
Count		 Comments
Syntech I & 8 Channel
70-336 ST-1 150-174 35 watts 8 dash mount VHF
70-526 ST-1 470-470 25 watt 8 dash mount UHF

70-343* ST-1 150-174 20-40 watt 80 Marine use, dash mount
70-443* ST-1 150-174 20-40 watt 80 Marine use, trunk mount
70-343A* ST-1 150-174 1-25 watt 80 Marine use, dash mount
70-443A* ST-1 150-174 1-25 watt 80 Marine use, trunk mount
  * These are type accepted for off shore and harbor use

70-050 ST-1 30-50 50 watt 80 Dash Mount low band
70-055 ST-1 30-50 50 watt 80 trunk mount low band
70-052 ST-1 30-50 50 watt 80 Dash Mount low band
70-056 ST-1 30-50 110 watt 80 trunk mount low band
   "A"=29-37 MHz, "B"=35-44 MHz, "C"=40-54 MHz

70-066 ST1 66-80 MHz 40 watt 80 Dash Mount mid band
70-076 ST1 66-80 MHz 40 watt 80 Trunk Mount mid band
   "A"=66-80 MHz, "B"=75-88 MHz

70-340 ST-1 136-174 40 watt 80 dash mount VHF
70-440 ST-1 136-174 40 watt 80 trunk mount VHF
70-342XL ST-1 136-174 40 watt 80 dash mount wide band VHF
70-442XL ST-1 136-174 40 watt 80 trunk mount wide band VHF
70-380 ST-1 136-174 80 watt 80 dash mount VHF
70-480 ST-1 136-174 80 watt 80 trunk mount VHF
70-382B ST-1 136-174 80 watt 80 dash mount wideband VHF*
70-482B ST-1 136-174 80 watt 80 trunk mount wideband VHF*
70-385 ST-1 136-174 110 watt 80 dash mount VHF
70-485 ST-1 136-174 110 watt 80 trunk mount VHF
   "A"=136-156 MHz, "B"=148-174 MHz
The 70-382 and 70-482 radios are noted as "B" models because they were not available in A range.

70-530 ST-1 406-512 30watt 80 UHF Dash Mount
70-630 ST-1 406-512 30watt 80 UHF Trunk Mount
70-565 ST-1 406-512 65watt 80 UHF Dash Mount
70-665 ST-1 406-512 65watt 80 UHF Trunk Mount
   "A"=406-430 MHz, "B"=450-470 MHz, "C"=470-494 MHz, "D"=494-512 MHz, "E"=430-450 MHz


Conventional 800 radios
70-915 ST-1 806-870 15watt   800 MHz Dash Mount
70-970 ST-1 806-870 15watt   800 MHz Trunk Mount
70-935 ST-1 806-870 35 watt   800 MHz Dash Mount
70-980 ST-1 806-870 35 watt   800 MHz Trunk Mount


Trunked 800 radios
70-9015 ST-1 806-870 15watt   Dash Mount
70-9035 ST-1 806-870 30watt   Dash Mount
70-9115 ST-1 806-870 15watt   Trunk Mount
70-9135 ST-1 806-870 30watt   Trunk Mount


Desktop Base Stations
70-058 ST-1 30-50 25-50 watts 80
70-840 ST-1 150-174 20-40 watts 80
70-842XL ST-1 150-174 20-40 watts 80
70-930 ST-1 450-470 15-30 watts 80
70-908 ST-1 806-870 >5-15 watts 80
70-909 ST-1 806-870 20-53 watts 80


Table Top Repeaters
70-805b ST-1 150-174 2-5 watts
70-834b ST-1 150-174 5-35 watt
70-905b ST-1 450-470 2-5 watts
70-924b ST-1 450-470 5-25 watts


XTR & 8 Channel
70-0351A XTR 30-36 60 W 22 Dash Mount
70-0351B XTR 36-42 60 W 22 Dash Mount
70-0351C XTR 42-50 60 W 22 Dash Mount
70-0355A XTR 30-36 60 W 22 Trunk Mount
70-0355B XTR 36-42 60 W 22 Trunk Mount
70-0355C XTR 42-50 60 W 22 Trunk Mount
70-0371A XTR 30-36 110 W 22 Dash Mount
70-0371B XTR 36-42 110 W 22 Dash Mount
70-0371B XTR 36-42 110 W 22 Dash Mount
70-0371C XTR 42-50 110 W 22 Dash Mount
70-0375A XTR 30-36 110 W 22 Trunk Mount
70-0375B XTR 36-42 110 W 22 Trunk Mount
70-0375C XTR 42-50 110 W 22 Trunk Mount
70-1066A   66-77 30 W 8 Dash Mount
70-1066B   77-88 30 W 8 Dash Mount
70-1070A XTR 66-77 40 W 22 Dash Mount
70-1070B XTR 77-88 40 W 22 Dash Mount
70-1075A XTR 66-77 40 W 22 Trunk Mount
70-1075B XTR 77-88 40 W 22 Trunk Mount
70-1336A   136-160 25W 8 Dash Mount
70-1336B   150-174 30 W 8 Dash Mount
70-1340A XTR 136-160 40 W 22 Dash Mount
70-1340B XTR 150-174 40 W 22 Dash Mount
70-1342A XTR 136-162 40 W 22 Dash Mount
70-1342B XTR 148-174 40 W 22 Dash Mount
70-1395A XTR 136-160 110 W 22 Dash Mount
70-1395B XTR 150-174 110 W 22 Dash Mount
70-1440A XTR 136-160 40 W 22 Trunk Mount
70-1440B XTR 150-160 40 W 22 Trunk Mount
70-1442A XTR 136-162 40 W 22 Trunk Mount
70-1442B XTR 148-174 40 W 22 Trunk Mount
70-1495A XTR 136-160 110 W 22 Trunk Mount
70-1495B XTR 150-174 110 W 22 Trunk Mount
70-1526A   403-430 25W 8 Dash Mount
70-1526B   450-470 25W 8 Dash Mount
70-1530A XTR 403-430 30 W 22 Dash Mount
70-1530B XTR 450-470 30 W 22 Dash Mount
70-1530C XTR 470-500 30 W 22 Dash Mount
70-1530D XTR 490-520 30 W 22 Dash Mount
70-1532A XTR 403-430 30 W 22 Dash Mount
70-1532B XTR 450-470 30 W 22 Dash Mount
70-1595A XTR 403-430 100W 22 Dash Mount
70-1595B XTR 450-470 100W 22 Dash Mount
70-1630A XTR 403-430 30 W 22 Trunk Mount
70-1630B XTR 450-470 30 W 22 Trunk Mount
70-1630C XTR 470-500 30 W 22 Trunk Mount
70-1630D XTR 490-520 30 W 22 Trunk Mount
70-1632A XTR 403-430 30 W 22 Trunk Mount
70-1632B XTR 450-470 30 W 22 Trunk Mount
70-1695A XTR 403-430 100W 22 Dash Mount
70-1695B XTR 450-470 100W 22 Dash Mount
70-9020   806-870 15W 200 LTR Trunked
70-9160 XTR 806-870 35W 22 Conventional
70-9170   806-870 15W 8 Conventional
70-9170   806-870 5W 8 Conventional
70-9180 XTR 806-870 35W 22 Conventional


Syntech 2 Low Band
70-0501 ST-2 30-54 50watt 320 dash mount
70-0502 ST-2 30-54 50watt 320 dash mount w/deluxe head
70-0551 ST-2 30-54 50watt 320 trunk mount
70-0552 ST-2 30-54 50watt 320 trunk mount w/deluxe head
70-0557 ST-2 30-54 50watt 320 trunk mount w/small head
70-0521 ST-2 30-54 110watt 320 dash mount
70-0522 ST-2 30-54 110watt 320 dash mount w/deluxe head
70-0561 ST-2 30-54 110watt 320 trunk mount
70-0562 ST-2 30-54 110watt 320 trunk mount w/deluxe head
70-0567 ST-2 30-54 110watt 320 trunk mount w/small head
  "A"=30-36 MHz, "B"=36-42 MHz, "C"=42-50 MHz
CWB indicates 11 MHz T & R
The deluxe head has an LCD display


Syntech 2 VHF (wideband, 24 MHz)
70-3421 ST-2 136-174 40 watt 320 dash mount
70-3422 ST-2 136-174 40 watt 320 dash mount deluxe head
70-4421 ST-2 136-174 40 watt 320 trunk mount
70-4422 ST-2 136-174 40 watt 320 trunk mount deluxe head
70-4427 ST-2 136-174 40 watt 320 trunk mount small head
70-3851 ST-2 136-174 110watt 320 dash mount
70-3852 ST-2 136-174 110watt 320 dash mount deluxe head
70-4851 ST-2 136-174 110watt 320 trunk mount
70-4852 ST-2 136-174 110watt 320 trunk mount deluxe head
70-4857 ST-2 136-174 110 watt 320 trunk mount small head
  "A"=136-160 MHz, "B"=150-174 MHz


Syntech 2 UHF
70-5301 ST-2 406-470 30 watt 320 dash mount wideband 24 MHz T & R
70-5302 ST-2 406-470 30 watt 320 dash mount wideband 24 MHz T & R, deluxe head
70-6301 ST-2 406-470 30 watt 320 trunk mount wideband
70-6302 ST-2 406-470 30 watt 320 trunk mount wideband, deluxe head
70-6307 ST-2 406-470 30 watt 320 trunk mount wideband, small head
  "A"=406-430 MHz, "B"=450-470 MHz


Continuous duty repeaters
70-0700 ST-2 148-174 45-70 watts   VHF
70-1500 ST-2 148-174 100-150 watts   VHF
70-2500 ST-2 148-174 250 watts   VHF
70-4050 ST-2 450-512 30-50 watt   UHF
70-4120 ST-2 450-512 90-120 watts   UHF
70-8030 ST-2 806-870 30 watt   800 MHz
70-8100 ST-2 806-870 100 watt   800 MHz
